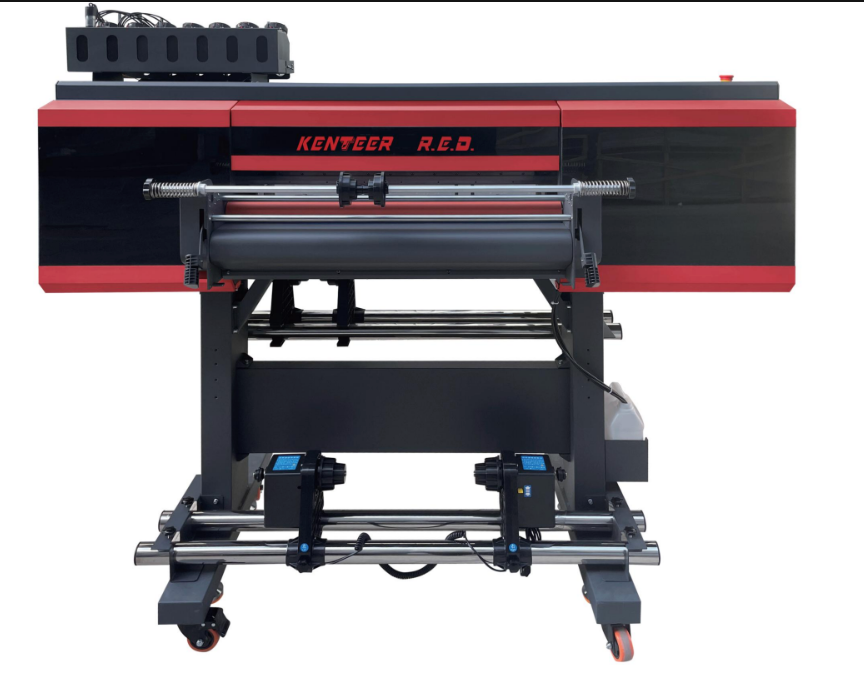

Kenteer KTM-A65-4 — 4-Head 60cm UV 3D Label Printer
Print stunning 3D labels in-house. No laminator needed.
Why printers love the KTM-A65-4
The Kenteer KTM-A65-4 is a compact, production-ready UV DTF label printer built for label shops, packaging converters, and print businesses that want premium 3D label output without the cost or hassle of a separate lamination line. Powered by four Epson i3200-U1 printheads and a 700mm print width, it delivers rich color, sharp detail, and a genuine tactile 3D finish on 0.35mm TPU printable heat-transfer vinyl — perfect for bottle labels, cosmetics, electronics branding, industrial nameplates, and premium product packaging.
Key Highlights
- 4 × Epson 3200-U1 printheads for high-speed, high-resolution output
- 700mm maximum print width — big enough for commercial label runs
- Up to 3.7 m²/hr production speed (8-Pass mode)
- Up to 720 × 2400 dpi print accuracy for crisp text and photo-quality graphics
- CMYK + White + White + Varnish ink configuration for vivid colors, opaque whites, and glossy 3D texture
- Built-in 1mm ink stacking creates a true raised 3D effect — no external laminator required
- Ink shortage alarm & anti-collision protection to safeguard your printheads
- Automatic winding system for unattended, continuous production
- HOSON board + Maintop 6.1 / RIIN / Photoprint RIP compatibility
Built to Last
Heavy-duty cold-rolled steel frame with aluminum alloy reinforcements and an acrylic dust cover ensure stability, deformation resistance, and a clean working environment. Imported silent guide rails keep motion smooth and precise, run after run.
Technical Specifications
| Parameter | Details |
|---|---|
| Printhead | Epson 3200-U1 × 4 |
| Max Print Width | 700 mm |
| Print Speed | 3.7 m²/hr (8-Pass) / 2.2 m²/hr (12-Pass) |
| Resolution | 360 × 3600 dpi / 720 × 2400 dpi |
| Ink Configuration | CMYK + W + W + Varnish |
| RIP Software | Maintop 6.1 / RIIN / Photoprint |
| Language | English / Chinese |
| Machine Size (L×W×H) | 1860 × 980 × 1300 mm |
| Packing Size (L×W×H) | 1880 × 1030 × 750 mm |
| Net / Gross Weight | 180 kg / 230 kg |
| Power Supply | 220V / 110V, 50/60 Hz |
| Operating Environment | 20–28°C, 65–75% RH |
| Media | 0.35mm TPU printable heat-transfer vinyl |
Backed by Shori Chemicals
As the authorized distributor for India, Shori Chemicals brings you genuine Kenteer machines, original inks and consumables, on-site installation, operator training, and responsive local after-sales support — so your production never stops.
