Smart Finishing Room
Ladies Wear & Casual Wear Tunnel Finisher
Intelligent tunnel ironing system designed for ladies wear, casual wear, dresses, children's garments, sportswear, and fashion apparel with automatic steaming, drying, cooling, and wrinkle removal.
ES Series
Intelligent Tunnel Ironing System

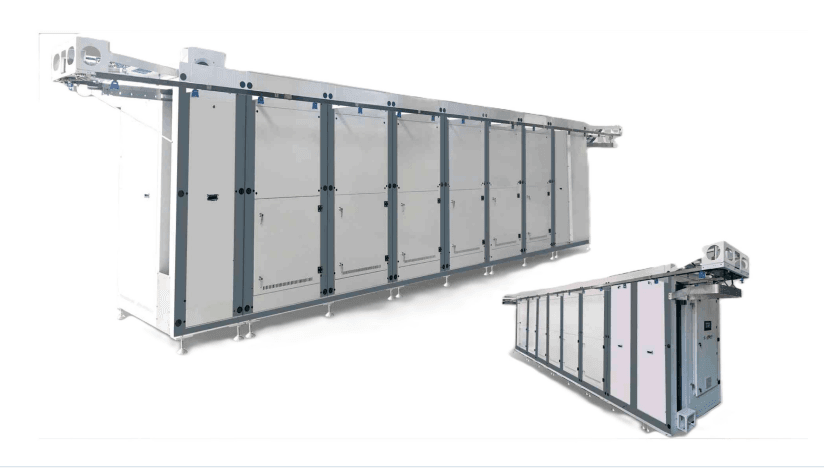

The ES Series Tunnel Finisher is a fully automatic garment ironing solution designed for high-volume processing of ladies wear, casual wear, dresses, sportswear, and children's garments.
The machine integrates steam treatment, drying, sterilization, cooling, and dehumidification into one continuous production process, providing uniform garment finishing with minimal manual intervention.
- Automatic steam ironing
- Continuous conveyor system
- Wrinkle removal
- Drying & cooling
- Humidity control
- PLC control system
Product Benefits
-
High Productivity
Processes 150–1200 garments per hour while requiring only one or two operators.
-
Uniform Ironing
Delivers consistent wrinkle-free finishing across every garment.
-
Lower Labour Cost
Automatic deskilling significantly reduces manual ironing requirements.
-
Touch-up Ready
Critical areas such as collars, cuffs, and hems can be refined easily if required.
ES Series
Technical Parameters
| Parameter | ES-150 | ES-300 | ES-600 | ES-1000 | ES-1200 |
|---|---|---|---|---|---|
| Maximum Capacity | 150 pcs/hr | 300 pcs/hr | 600 pcs/hr | 1000 pcs/hr | 1200 pcs/hr |
| Power | 12 kW | 14 kW | 20 kW | 26 kW | 27 kW |
| Steam Consumption | 80–120 kg/h | 100–150 kg/h | 130–180 kg/h | 150–200 kg/h | 200–250 kg/h |
| Steam Pressure | 0.4 MPa | ||||
| Voltage | 3-Phase 380V AC 50Hz | ||||
| Air Pressure & Consumption | 0.4 MPa, 25 L/h | ||||
| Machine Size | 4600 × 1520 × 2350 mm | 6600 × 1520 × 2350 mm | 8600 × 1520 × 2350 mm | 10600 × 1520 × 2350 mm | 12600 × 1520 × 2350 mm |
Standard: 3 m Infeed/Outfeed Conveyor · Optional: Inbuilt Electric Steam Generator
In operation
ES Series Tunnel Finisher
ES Series tunnel finisher in production.
