Automatic Spreading Machine
PL Pro & PL eCo GS Series
Intelligent automatic fabric spreading solution designed to improve productivity, reduce material waste, and achieve high spreading accuracy.
Model Introduction
Two machines, two widths
PL Pro
Intelligent Automatic Spreading
Automatic Edge Alignment
Accurate fabric positioning.
Tension Control
Consistent fabric spreading quality.
PL eCo — GS Series
Smart Automatic Spreading Solution
Wider goods
Cloth width from 1600 to 3100 mm on a table up to 3300 mm.
Heavier rolls
Carries a fabric roll up to 150 kg.
Technical data
Technical Parameters
| Specification | PL Pro | PL eCo (GS Series) |
|---|---|---|
| Model | PL Pro | PL eCo |
| Cloth Width | 1800 – 2200 mm | 1600 – 3100 mm |
| Table Width | 2000 – 2400 mm | 1830 – 3300 mm |
| Power Supply | 220V | 220V |
| Power Consumption | 1.5 kW | 1.5 kW |
| Fabric Weight | 120 kg | 150 kg |
| Fabric Roll Diameter | 50 cm | — |
| Roll Circumference | — | 450 mm |
| Travel Speed | 100 m/min | 100 m/min |
| Spreading / Lay Height | 22 cm | 22 cm |
In operation

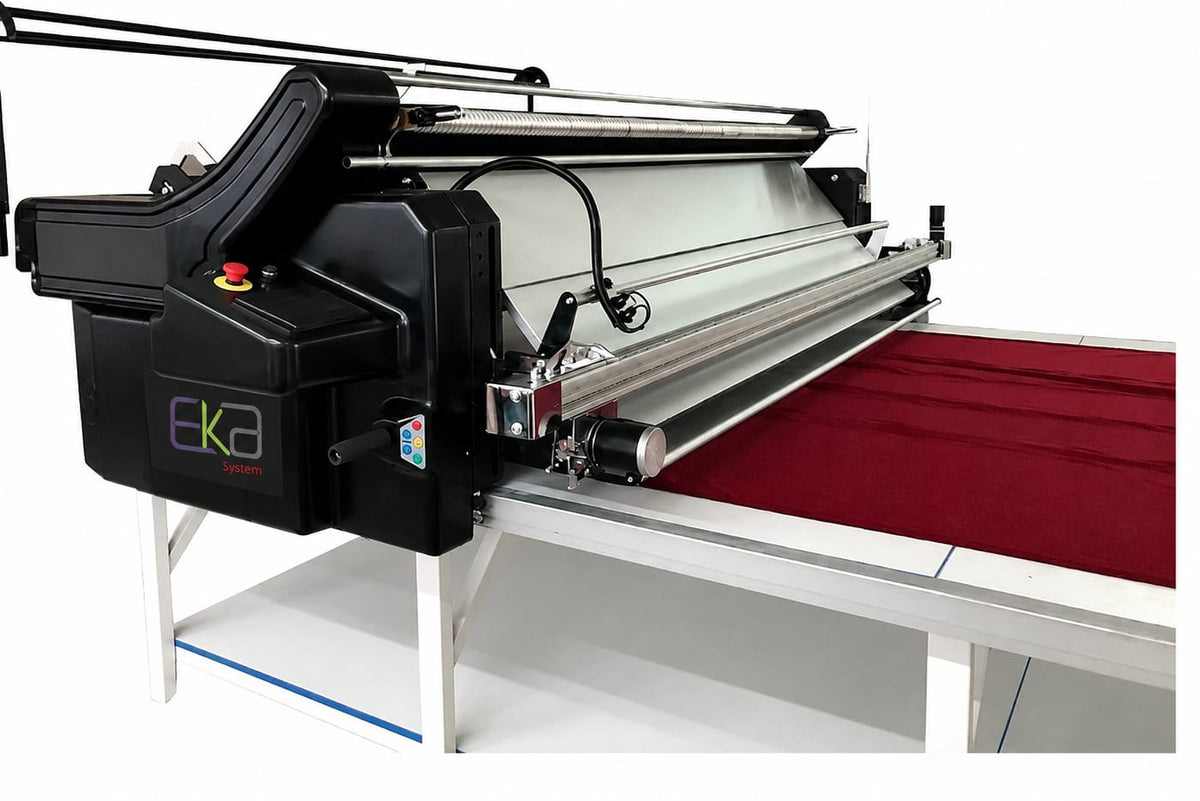

PL Pro spreading
PL Pro automatic spreading machine.
In operation

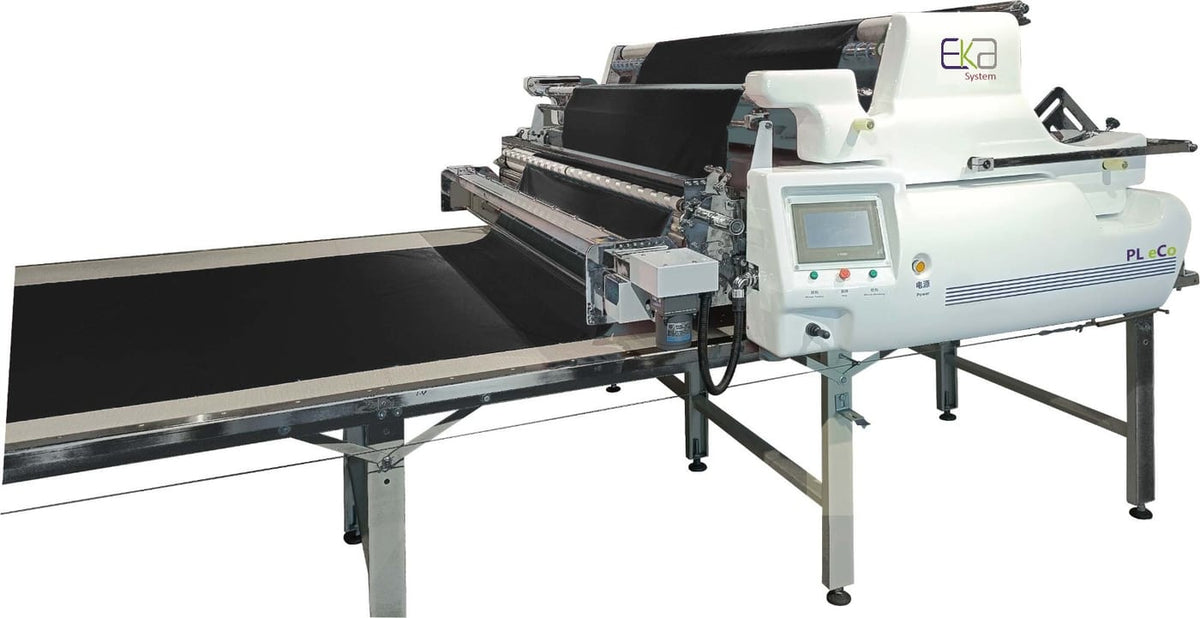

GS Series spreading
PL eCo GS Series automatic spreading machine.
Key Features
-
Automatic Edge Alignment
Accurate fabric positioning.
-
Tension Control
Consistent fabric spreading quality.
-
Touch Screen Control
User-friendly operation interface.
-
Variable Speed
Adjustable spreading speed.
-
Automatic Cutting Device
Integrated end cutting system.
-
Low Maintenance
Reliable industrial design.
